Certifications & Testing
UN38.3, MSDS, IEC62660, RoHS
Pulse stress test
Cycle stability under 40C load test
Flame retardancy evaluation test
Applications
Racing drones, industrial starters, tactical robots, power racing e-bikes

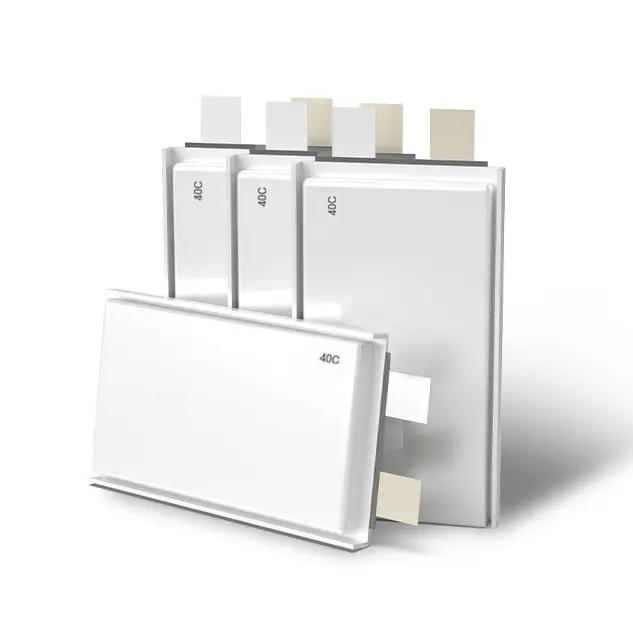

40C High-Rate LiFePO4 Battery Models and Specifications
| Cell Model | Discharge Rate (C) |
Nominal Voltage (V) |
Capacity (mAh) |
Max continuous current(A) |
Thickness(mm) | Width (mm) |
Length (mm) |
Weight (g) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SYB6264079 | 40C | 3.2V | 1700mAh | 68A | 6.0±0.2 | 64.0±1.0 | 79.5±1.0 | 55.5±2.0 | ||||||||
| SYB5570096 | 40C | 3.2V | 2000mAh | 80A | 5.2±0.2 | 70.0±1.0 | 97.0±1.0 | 65.5±2.5 | ||||||||
| SYB8861115 | 40C | 3.2V | 3600mAh | 144A | 8.5±0.3 | 61.0±1.0 | 116.0±1.0 | 112.5±3.0 | ||||||||
| SYB8875110 | 40C | 3.2V | 4000mAh | 160A | 8.5±0.3 | 74.5±1.0 | 110.0±1.0 | 127.0±3.0 | ||||||||
| SYB9074115 | 40C | 3.2V | 4250mAh | 160A | 8.7±0.3 | 73.5±1.0 | 115.0±1.0 | 135.0±3.0 | ||||||||
| SYB7680186 | 40C | 3.2V | 5800mAh | 232A | 7.3±0.3 | 79.5±1.0 | 185.0±1.0 | 187.0±3.0 | ||||||||
| SYB9080186 | 40C | 3.2V | 7000mAh | 280A | 8.7±0.3 | 79.5±1.0 | 185.0±1.0 | 220.0±5.0 | ||||||||
| SYBA080186 | 40C | 3.2V | 7800mAh | 312A | 9.7±0.3 | 79.5±1.0 | 185.0±1.0 | 246.0±5.0 | ||||||||
Features of High-Rate LiFePO4 Battery
- Adopting laminated technology, the internal resistance is smaller, and the performance in terms of discharge and cycle life is higher
- The discharge rate meets the highest instantaneous rate of 150C, 90C discharge for 2 seconds, 45C continuous discharge, and 5C fast charging
- Higher discharge efficiency, better temperature stability and tolerance
Ultra thin, lightweight, small in size, flexible in shape and size, capable of adapting to various applicationspact size, and flexible shape dimensions to accommodate diverse applications
Cycle Life Test Curve (1C Charge)
In the charge discharge cycles of 1C charging and 25C discharging, high rate lithium iron phosphate batteries have excellent cycle life performance. From the table, it can be seen that after 300 cycles, the capacity retention rate exceeded 94%.
Why Choose Symbo High-Rate LiFePO4 Batteries?
Compared with high rate lithium polymer batteries, Symbo high rate lithium iron phosphate batteries use innovative chemical formulations that can provide safe and stable discharge performance; The maximum cycle life of lithium iron phosphate batteries can reach 2000 cycles, and they can work normally in a high temperature environment of 60 ℃. Symbo provides integrated battery system customization services including high rate lithium iron phosphate battery cell customization, battery management system (BMS), and structural design. We can also customize high rate lithium iron phosphate batteries for different industries according to the actual needs of users, making your products more competitive.
- Batteries are more environmentally friendly;
- More stable performance;
- Chemical substances are safer;
- Support 25C rate continuous discharge;
- Longer lifespan, exceeding 2000 cycles;
- Can work normally in high temperature environments and withstand temperatures up to 60 ℃;
- Comprehensive service system: Quickly respond to customer inquiries and provide solutions
We provide the following services:
- Flexible support for customized solutions
- Reliable and stable performance
- Can provide samples and mass production
- Provide OEM and ODM services
Application
The high rate lithium iron phosphate batteries developed and produced by Symbo are widely used in emergency starting power supplies, electric drills, electric forklifts, electric go karts, electric lift beds, electric gliders, industrial robots, high-performance racing cars, sports equipment starting power supplies, and other fields. Our R&D team works closely with customers to provide suitable power solutions for their products.
