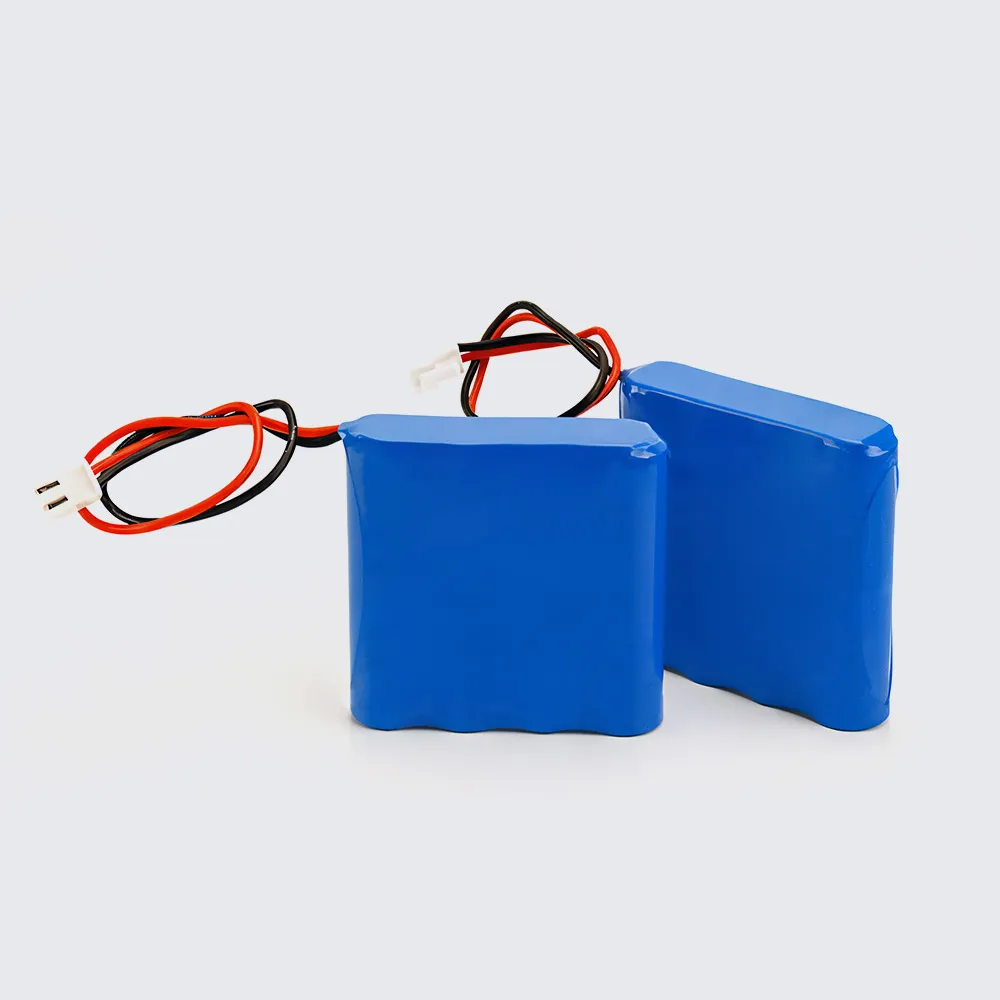

The 3.7V 10000mAh lithium battery pack for vacuum cleaner inflation pumps is a high-performance power solution designed for handheld wireless vacuum cleaners, inflation pumps, portable cleaning devices, outdoor mobile inflation tools, and more. Adopting multi-cell parallel technology, integrated into an integrated battery module, with a super large capacity of 10000mAh and a stable voltage output of 3.7V, it can meet the long-term continuous high-load operation requirements of the equipment. Built-in intelligent BMS system and efficient heat dissipation structure effectively control battery temperature during high-power operation, with overcharge, overdischarge, overcurrent, and short circuit protection functions, enhancing usage safety.
| Model | SYB-3.7V10000mAh |
|---|---|
| Voltage/Capacity | 3.7V 10000mAh |
| Charge Current | 2A |
| Discharge Current | 4A |
| Configuration | 1S4P |
| Cell Model | 18650-2500-1C |
| Cycle Life | About 500 cycles |
| Storage Temperature | 20~35°C |
| Operating Temperature | Charge: 0~45°CDischarge: -20~60°C |
| Dimension | 66.5mm (L) × 55.5mm (W) × 36.98mm (H) |
| Weight | 180g |
UN38.3, IEC62133,CE
Overcurrent test
Drop resistance testing
Handheld vacuum cleaners
Air compressors
Tire inflators
.
