Specification

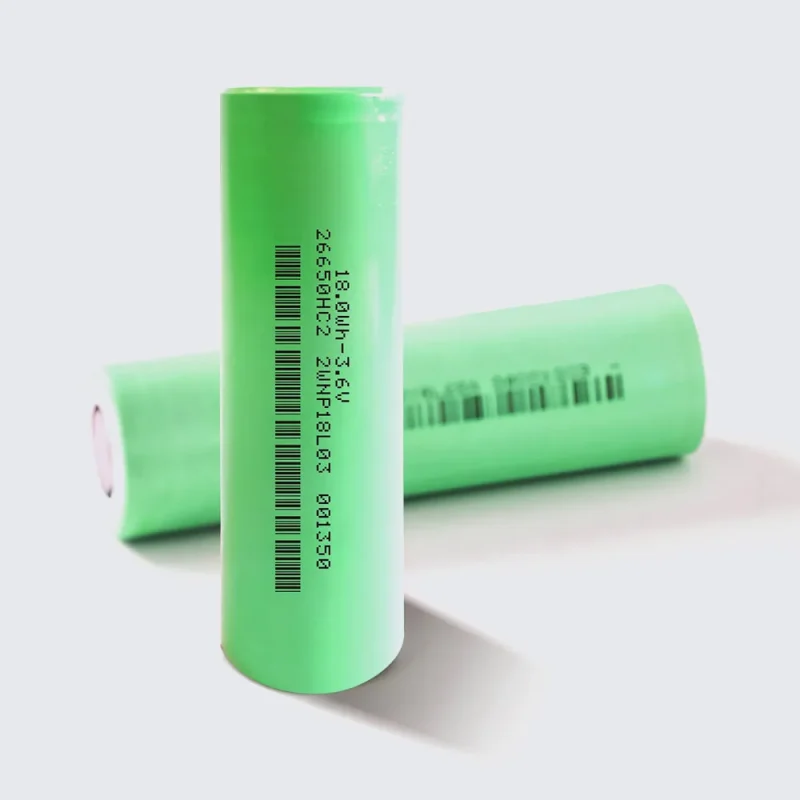

| Model | SYB-26650 |
|---|---|
| Cell Material Type | Ternary + Composite Graphite |
| Cell Dimensions | Height: 65.25±0.25 mmDiameter: 26.1±0.2 mm |
| Nominal Voltage | 3.6V |
| Cell Capacity | Nominal: 5 Ah (0.5C)Minimum: 4.8 Ah (0.5C) |
| Internal Resistance | ≤20 mΩ |
| Cell Weight | ≤0.098 kg |
| Max Continuous Discharge Rat | 2C |
| Max Continuous Charge Rate | 1C |
| Cycle Life | ≥80% after 1000 cycles(RT 0.5C/1C, 100%   DOD at 25°C) |
| Operating Temperature Range | Charge: 0~45°CDischarge: -20~60°C |
| Energy Density Ratio | 189 Wh/kg (1C) |
Certifications
UN38.3, IEC62133, MSDS, RoHS compliant
Overcharge, over discharge test
short-circuit test
Thermal shock test
Capacity, voltage consistency, and internal resistance test
Applications
Flashlights
Backup power systems
Robotics
E-bikes
Solar lanterns
Electric tool
