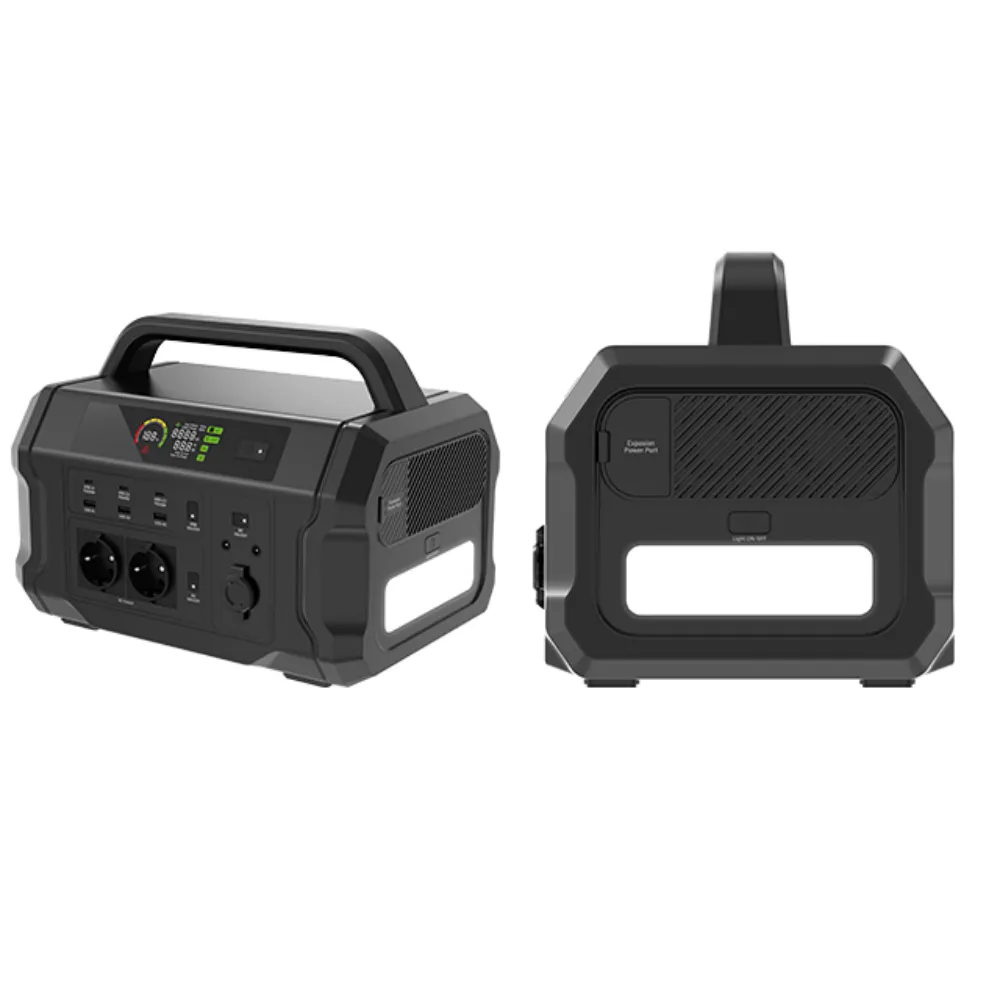

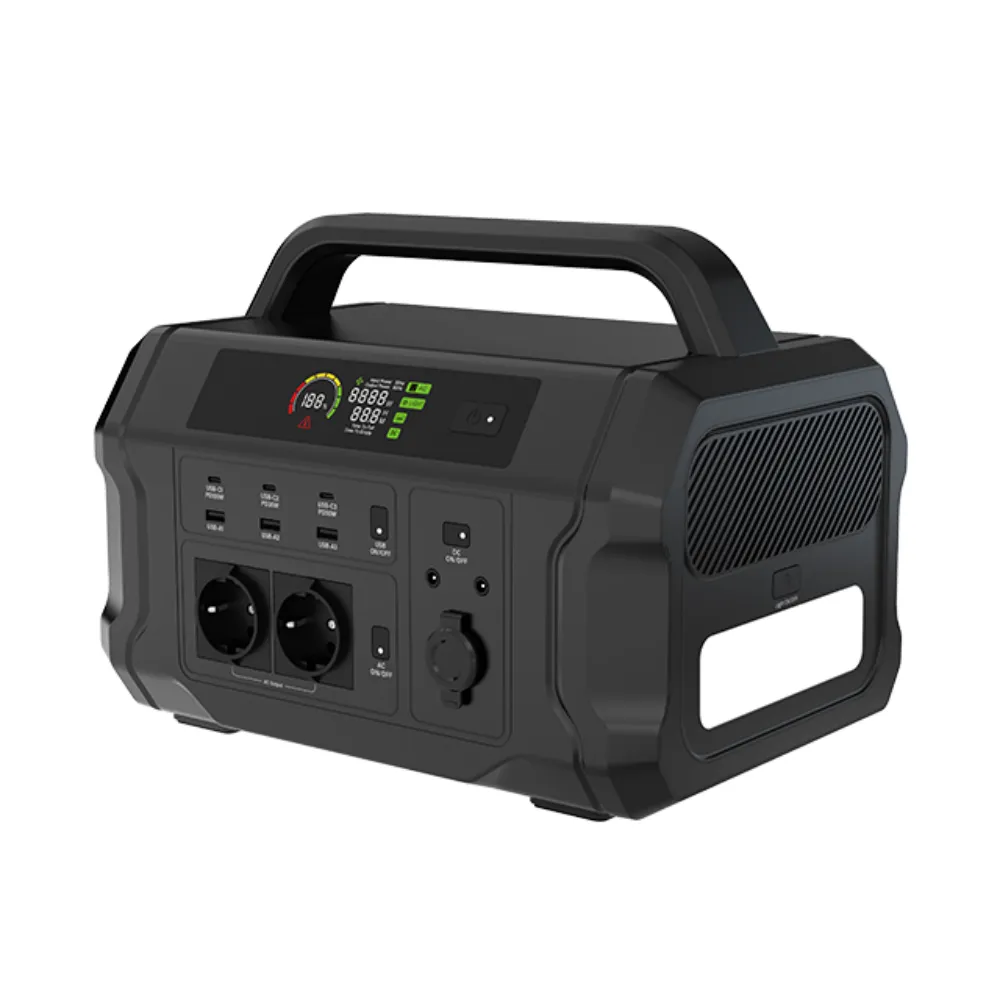

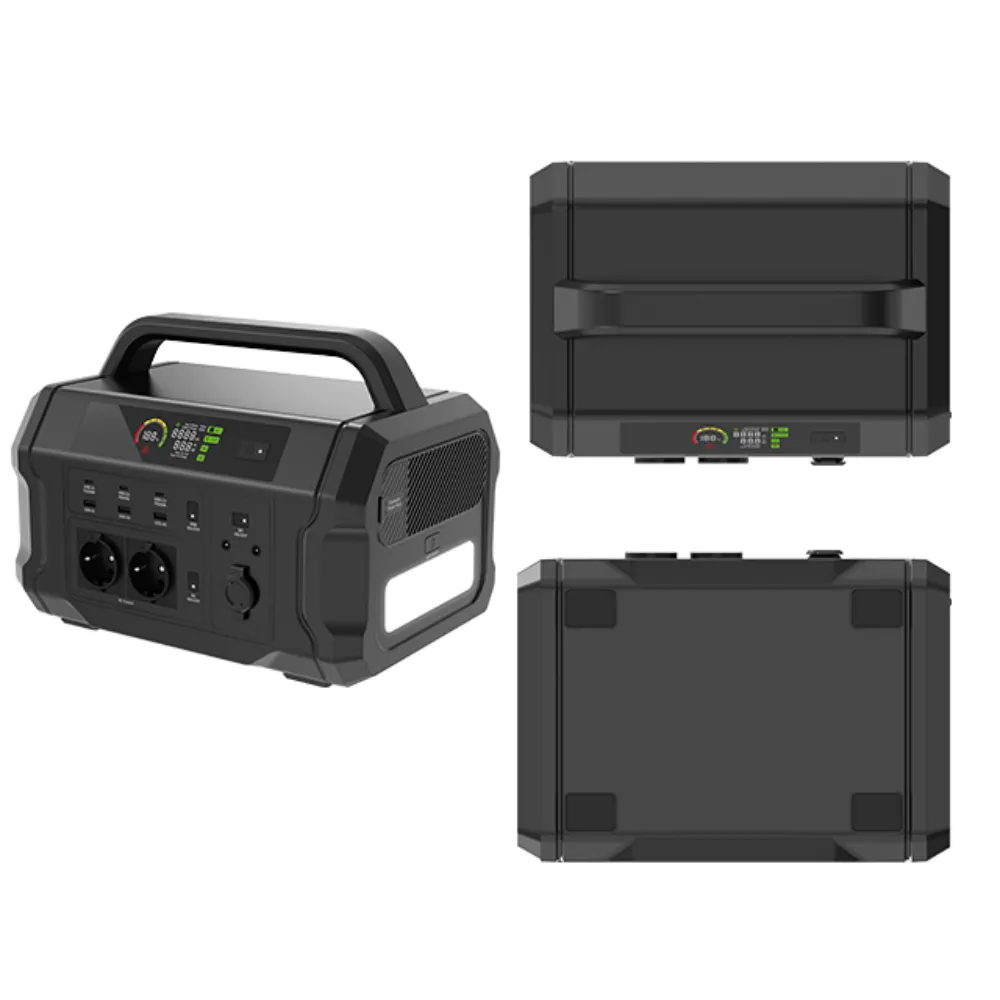

Specifications

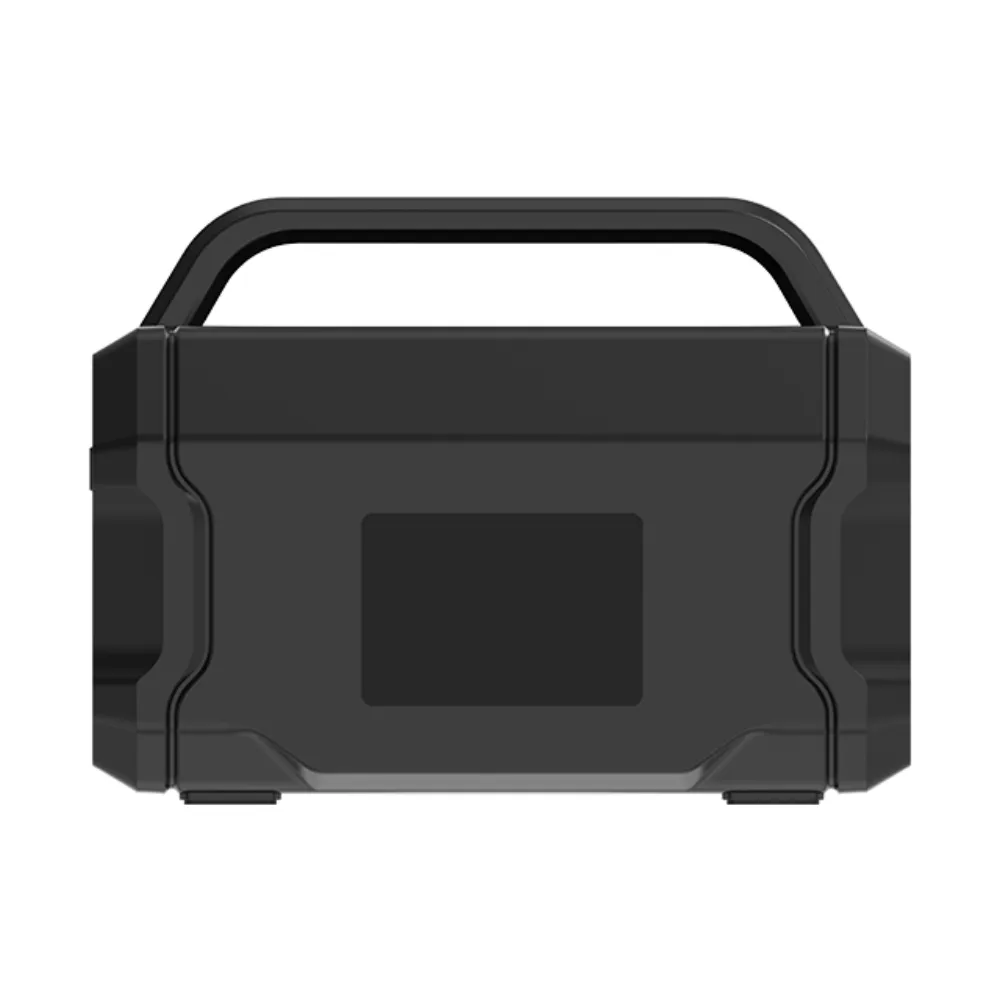

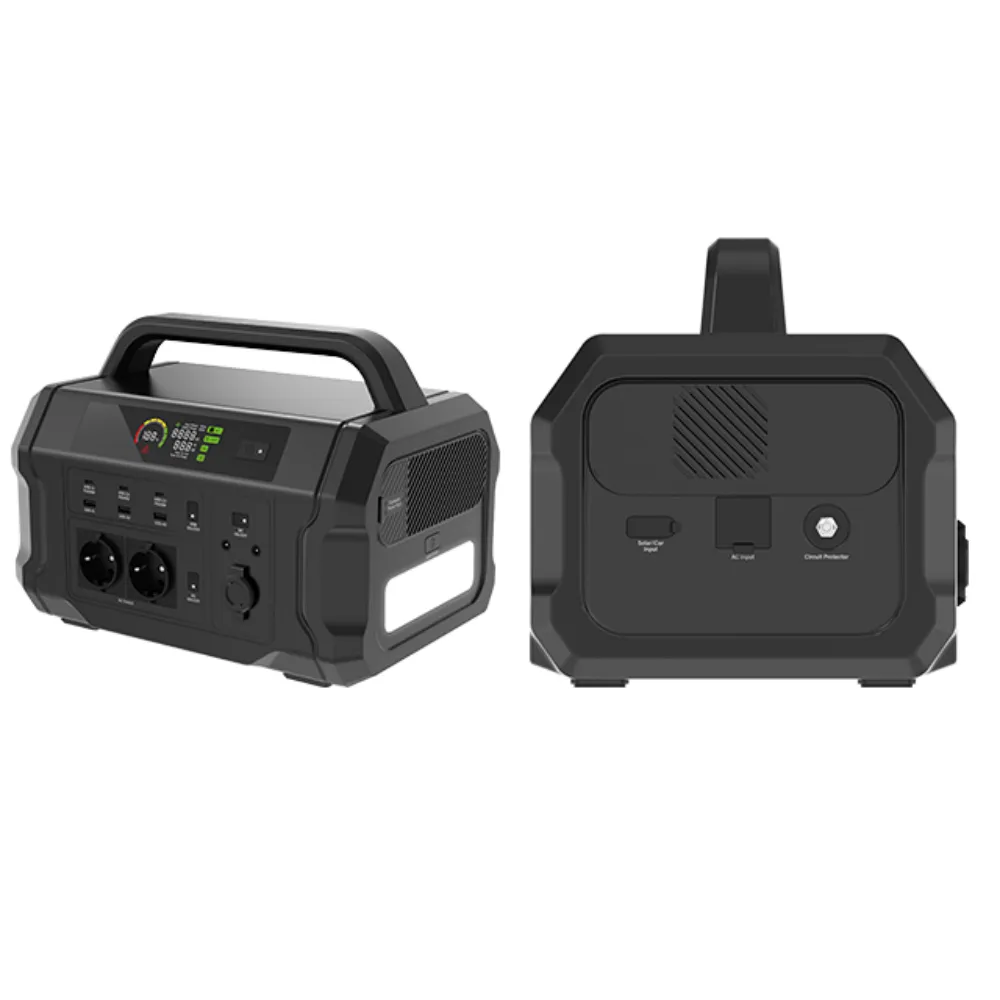

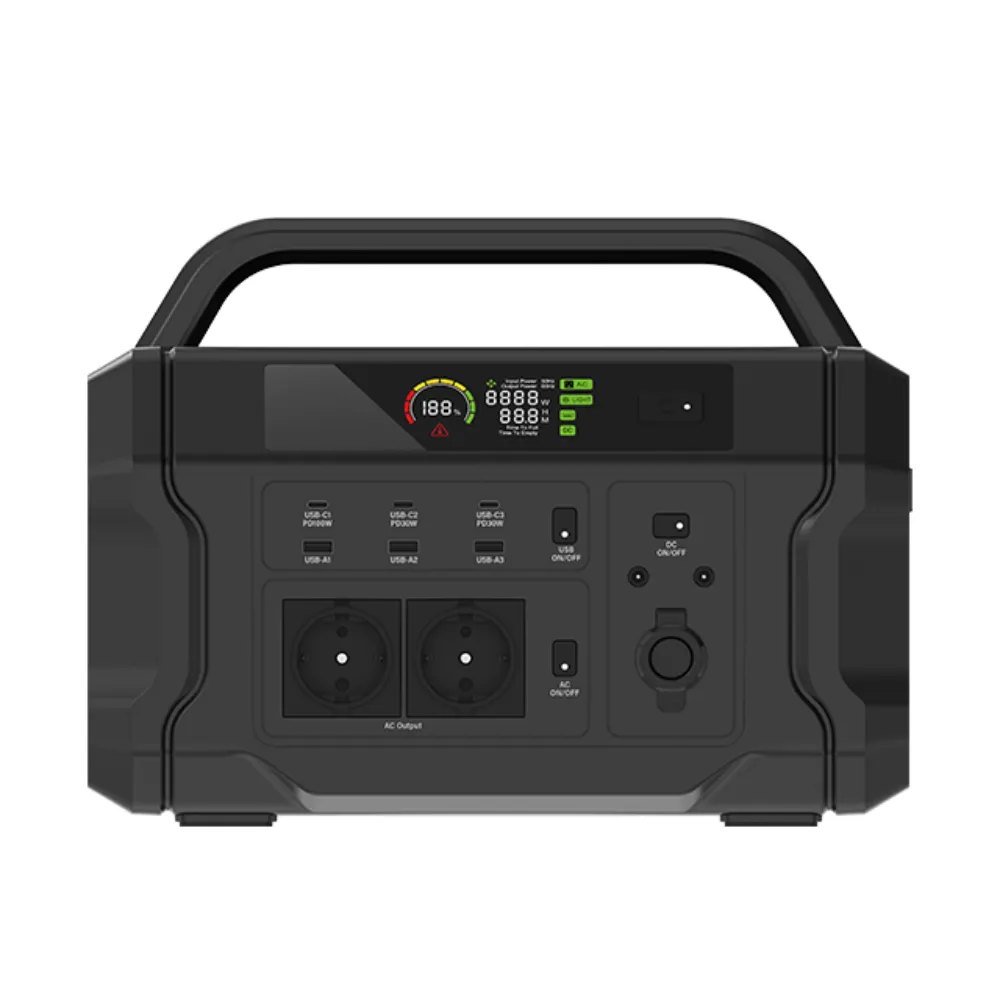

| Model | SYBP-1200-M1 |
|---|---|
| Cell Type | LiFePO4 |
| Rated voltage | 22.4V |
| Rated capacity | 50Ah |
| Rated energy | 1120Wh |
| Output | |
| AC Output Power | 1200W |
| AC Output Waveform | Pure Sine Wave |
| AC Output Voltage | 230V/120V-50Hz/60Hz |
| USB output | USB-C1 Output:1 × 100W Max.USB-C2/C3 Output:2 × 30W Max.
USB-A1 Output:1 × 22.5W USB-A2/A3 Output:2 × 5V/2.4A |
| Type-C output | / |
| DC output | 1 × 12V/10A(Car output);2 × 12V/10A DC 5521(5.5mm outup) |
| Wireless charging | / |
| Input | |
| Adapter Input | / |
| AC Input | 800W |
| Type-C input | / |
| Solar Input | 11-50V/8.5A 300W(max) |
| Car Input | 12/24V from Cigarette Lighter Port |
| LED light | 3W (Half Bright,constant light, SOS, burst flash) |
| Accessories | AC Power Cord、Car Charger、OEM Manual、Accessory Box |
| Warranty period (Year) | 1 year |
| Packaging | 1:Kraft paper box2:UN outer box |
| Size mm | 351*253*260 |
| Wight KG | 12 |
| Gross weight KG | 14.35 |
| Packing Quantity | 1 box, 1 piece |
| Note | *Maximum Input :1000W, with AC and Solar Input *Simultaneously*Life Cycles:2500+ Cycles to 80% Original Capacity
*Shelf-life:Recharge to 80% Every 3-6 Months *Management System:MPPT Controller, BMS, Over *Voltage Protection, Short Circuit Protection,etc. *Operating Temperature:14-104℉ (-10-40℃) *Storage Temperature:14-113℉ (-10-45℃) |
Certifications & Testing
UN38.3, UL1973, CE
Charge discharge cycle test
10G acceleration impact test
IP65 waterproof and dustproof test
Applications
Outdoor events
Remote job sites
Off-grid backup
Electric tools (drills, chainsaws, etc.), construction lighting equipment
Small medical equipment (oxygen concentrator, emergency monitoring device)
