Specifications

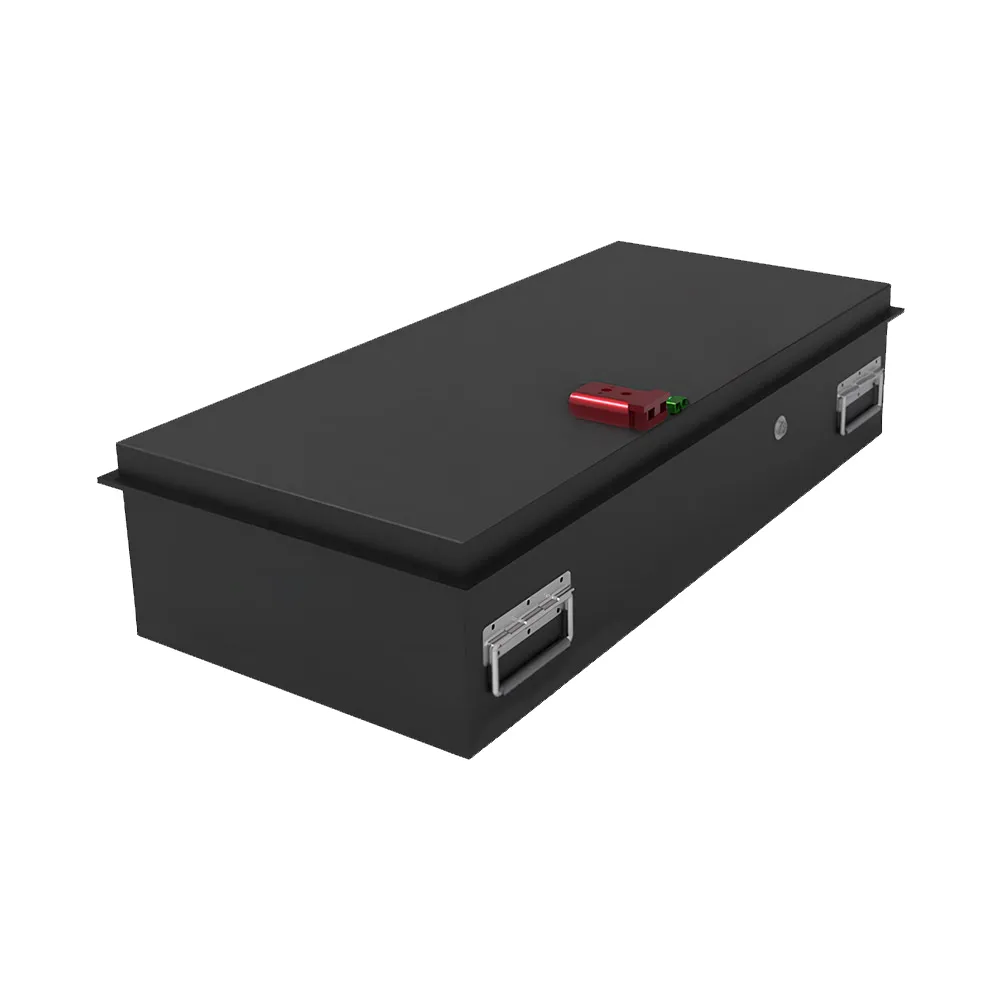

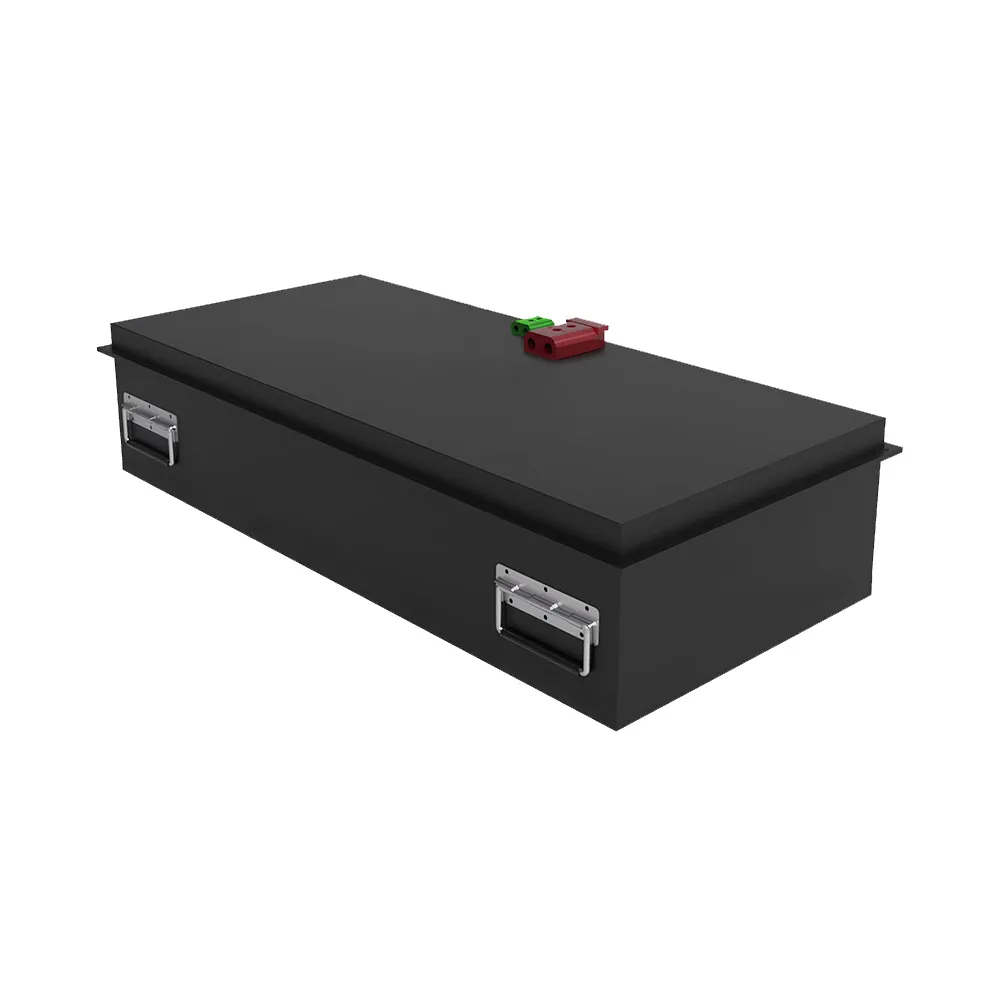

52V 420Ah Lithium-ion Battery for Forklifts
| Model | SYB-52V420A |
|---|---|
| Voltage/Capacity | 52V 420Ah |
| Configuration | 15S4P (15 Series, 4 Parallel) |
| Dimensions (L×W×H) | Battery Box: 1200×600×290 mm |
| Weight | Approx. 175 kg |
| Continuous Current | 250A |
| Peak Current | 300A (30 seconds) |
| Communication Protocol | CAN2.0 |
| Applications | Forklifts / Other Power Equipment |
| Protection Rating | IP65 |
| Cooling Method | Natural Cooling |
| Heating | Yes |
| Storage Temperature | 0°C to 35°C |
| Operating Temperature | -35°C to 75°C |
Standards
UN38.3
IEC 62619
ISO 9001 / ISO 14001 / ISO 45001
CE / RoHS / MSDS
Custom dimensions, connectors, casing, and BMS protocols available for OEM/ODM orders.
