Specifications

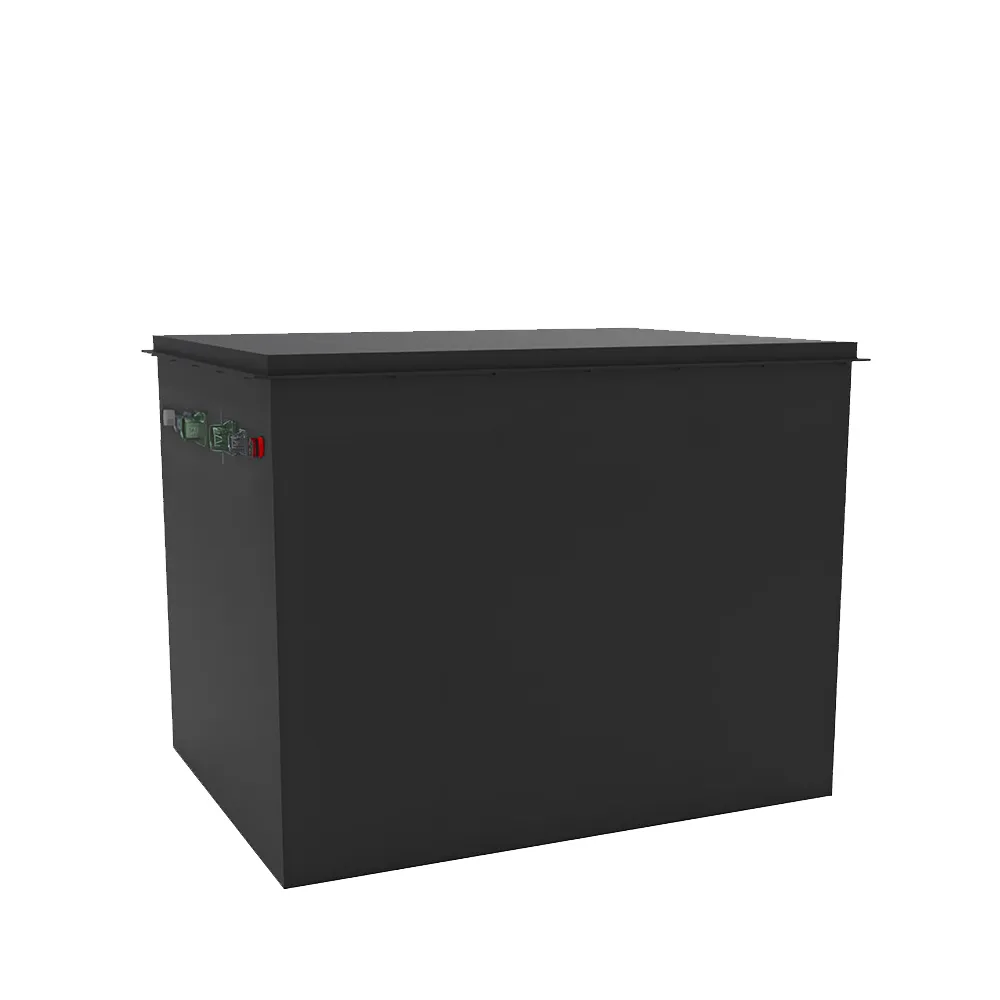

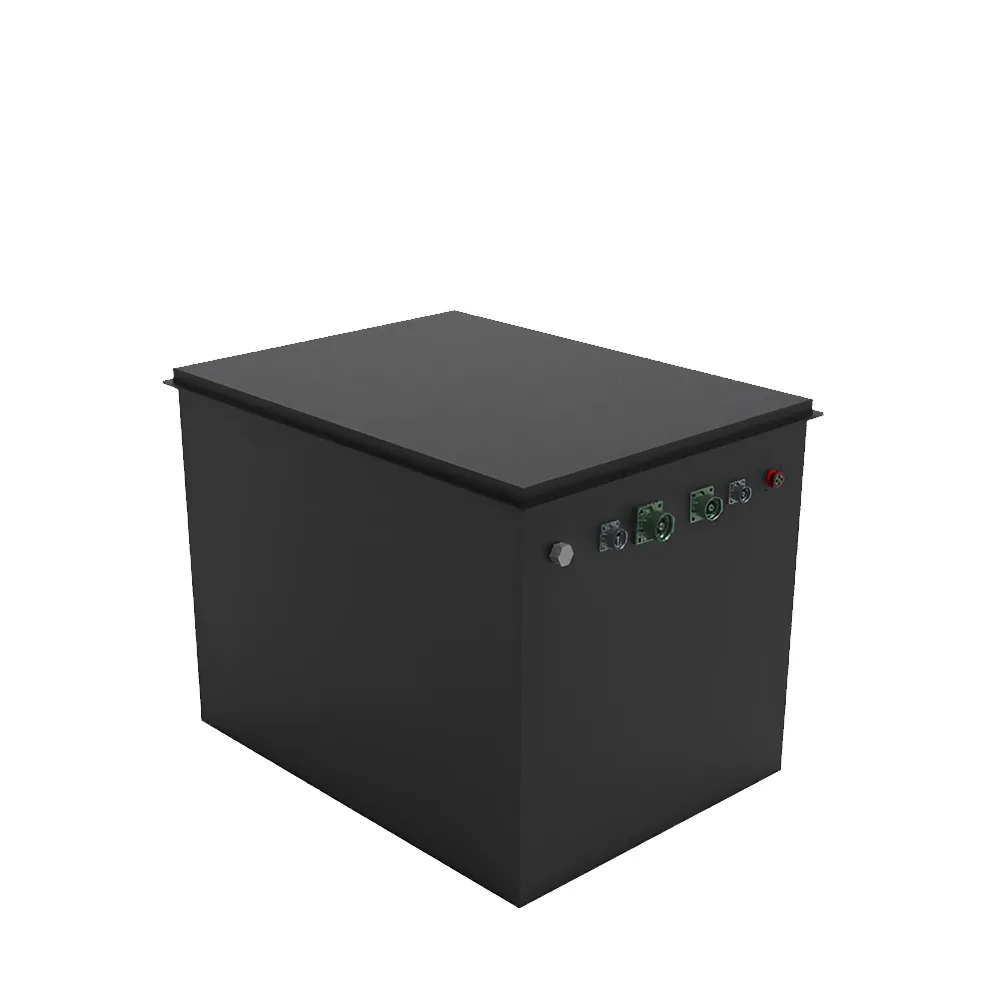

| Model | SYB-72V115Ah |
|---|---|
| Voltage/Capacity | 72V 115Ah |
| Configuration | 24S1P (24 Series, 1 Parallel) |
| Dimensions (L×W×H) | 470mm × 610mm × 480mm |
| Weight | Approx. 71 kg |
| Continuous Current | 150A |
| Peak Current | 200A (30 seconds) |
| Communication Protocol | CAN2.0 |
| Applications | Golf Carts / Sightseeing Vehicles |
| Protection Rating | IP65 |
| Cooling Method | Natural Cooling |
Certification standards and testing
UN38.3, IEC 62660-2, and ISO 13849
Charge discharge cycle test
Simulated lightning surge test
Short circuit test
Charge retention test
