Certifications & Testing
UN38.3, UL, IEC62660, RoHS
High current continuous output simulation
Impact testing
Cycle reliability validation test
Applications
High-performance electronic devices such as remote-controlled aircraft, first-person view (FPV) drones, remote-controlled cars, and boosters.

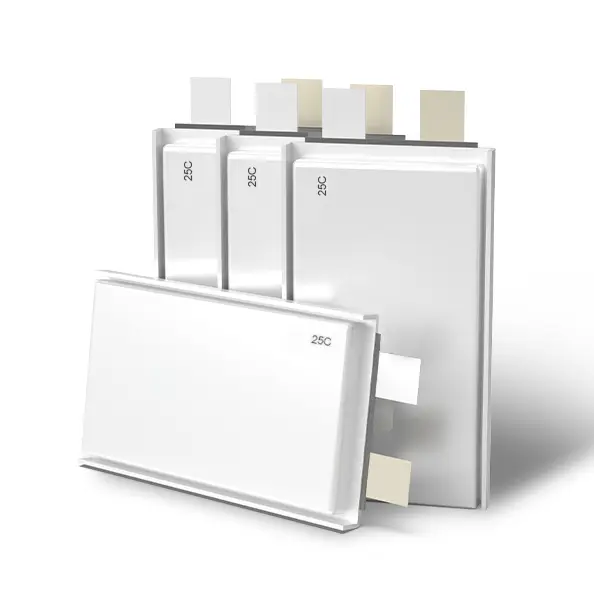

25C High-Rate LiPo4 Battery Models and Specifications
|
Cell Model |
Discharge Rate (C) |
Nominal Voltage (V) |
Capacity (mAh) |
Max continuous current(A) |
Thickness(mm) |
Width (mm) |
Length (mm) |
Weight (g) |
|
SYB6216054 |
25C |
3.7V |
450mAh |
11.25A |
5.9±0.3 |
16.0±0.5 |
56.0±0.5 |
10.5±1.0 |
|
SYB5017095 |
25C |
3.7V |
700mAh |
17.5A |
4.8±0.2 |
16.5±1.0 |
95.5±1.0 |
15.0±1.0 |
|
SYB6735062 |
25C |
3.7V |
1250mAh |
31.25A |
6.4±0.2 |
34.5±1.0 |
62.5±1.0 |
27.5±1.5 |
|
SYB6535062 |
25C |
3.7V |
1300mAh |
32.5A |
6.2±0.2 |
34.5±1.0 |
62.5±1.0 |
28.0±1.5 |
|
SYB5334096 |
25C |
3.7V |
1650mAh |
41.25A |
5.1±0.2 |
33.5±1.0 |
96.5±1.0 |
35.0±1.5 |
|
SYB5834096 |
25C |
3.7V |
1800mAh |
45A |
5.6±0.2 |
33.5±1.0 |
96.5±1.0 |
37.5±1.5 |
|
SYB5742083 |
25C |
3.7V |
2050mAh |
51.25A |
5.5±0.2 |
41.5±1.0 |
82.5±1.0 |
42.0±1.5 |
|
SYB9028092 |
25C |
3.7V |
2300mAh |
48A |
8.7±0.3 |
27.5±1.0 |
93.0±1.0 |
46.5±2.0 |
|
SYB6834096 |
25C |
3.7V |
2450mAh |
61.25A |
6.6±0.2 |
33.5±1.0 |
97.0±1.0 |
45.0±1.5 |
|
SYB4967100 |
25C |
3.7V |
3000mAh |
75A |
4.7±0.2 |
66.5±1.0 |
99.5±1.0 |
63.0±2.0 |
|
SYB8044084 |
25C |
3.7V |
3400mAh |
85A |
7.7±0.3 |
43.5±1.0 |
86.0±1.0 |
66.5±2.5 |
|
SYB7042126 |
25C |
3.7V |
4000mAh |
96A |
6.8±0.3 |
41.5±1.0 |
127.0±1.0 |
79.5±2.5 |
|
SYB8642121 |
25C |
3.7V |
5000mAh |
96A |
8.3±0.3 |
41.5±1.0 |
121.5±1.0 |
96.0±3.0 |
|
SYB7644124 |
25C |
3.7V |
5300mAh |
40A |
7.3±0.3 |
42.5±1.0 |
125.0±1.0 |
98.0±3.0 |
|
SYB7845150 |
25C |
3.7V |
5500mAh |
120A |
7.5±0.3 |
44.5±1.0 |
150.0±1.0 |
114.5±3.0 |
|
SYB4280180 |
25C |
3.7V |
5600mAh |
140A |
4.0±0.2 |
79.0±1.0 |
179.0±1.0 |
127.0±3.0 |
|
SYB8244143 |
25C |
3.7V |
5900mAh |
147.5A |
7.9±0.3 |
43.5±1.0 |
143.0±1.0 |
116.5±3.0 |
|
SYB9842124 |
25C |
3.7V |
6000mAh |
96A |
9.5±0.3 |
41.5±1.0 |
125.0±1.0 |
112.0±3.0 |
|
SYB8878093 |
25C |
3.7V |
6300mAh |
157.5A |
8.5±0.3 |
77.5±1.0 |
92.5±1.0 |
129.0±3.0 |
|
SYB9645140 |
25C |
3.7V |
6800mAh |
120A |
9.3±0.3 |
44.5±1.0 |
139.5±1.0 |
133.0±3.0 |
|
SYB7763135 |
25C |
3.7V |
7000mAh |
120A |
7.3±0.3 |
62.0±1.0 |
134.5±1.0 |
139.0±3.0 |
|
SYB7770175 |
25C |
3.7V |
10000mAh |
80A |
7.4±0.3 |
69.5±1.0 |
174.0±1.0 |
201.0±5.0 |
|
SYBA875175 |
25C |
3.7V |
15800mAh |
110.6A |
10.5±0.3 |
74.5±1.0 |
174.5±1.0 |
309.0±5.0 |
|
SYB8390190 |
25C |
3.7V |
16000mAh |
112A |
8.0±0.3 |
89.5±1.0 |
189.0±1.0 |
311.0±5.0 |
|
SYB9395183 |
25C |
3.7V |
18000mAh |
126A |
9.0±0.3 |
94.5±1.0 |
182.5±1.0 |
350.0±5.0 |
|
SYB82A6213 |
25C |
3.7V |
19000mAh |
133A |
7.8±0.3 |
105.5±1.0 |
212.0±1.0 |
385.0±10.0 |
|
SYBA895183 |
25C |
3.7V |
21000mAh |
147A |
10.5±0.3 |
94.5±1.0 |
182.5±1.0 |
405.0±10.0 |
|
SYB91A6213 |
25C |
3.7V |
22000mAh |
154A |
8.8±0.3 |
105.5±1.0 |
212.0±1.0 |
437.0±10.0 |
|
SYBA193240 |
25C |
3.7V |
24000mAh |
168A |
9.7±0.3 |
92.5±1.0 |
239.0±1.0 |
487.0±10.0 |
|
GRA2A6213 |
25C |
3.7V |
25000mAh |
175A |
9.9±0.3 |
105.5±1.0 |
212.0±1.0 |
494.0±10.0 |
|
SYBA7A6213 |
25C |
3.7V |
28000mAh |
196A |
10.5±0.3 |
105.5±1.0 |
212.0±1.0 |
536.0±10.0 |
Features of High Discharge LiPo Battery
- Excellent high-current discharge performance, strong burst power, high discharge platform, high energy density, and good cycle life;
- Utilizing a stacking process, the internal resistance is lower. More conducive to high-rate charging and discharging, resulting in high-efficiency output performance.
- The High Discharge LiPo Battery Cell is ultra-thin, small in size, and extremely lightweight. It can be manufactured into irregularly shaped batteries of various capacities, with a thickness as low as 0.5mm.

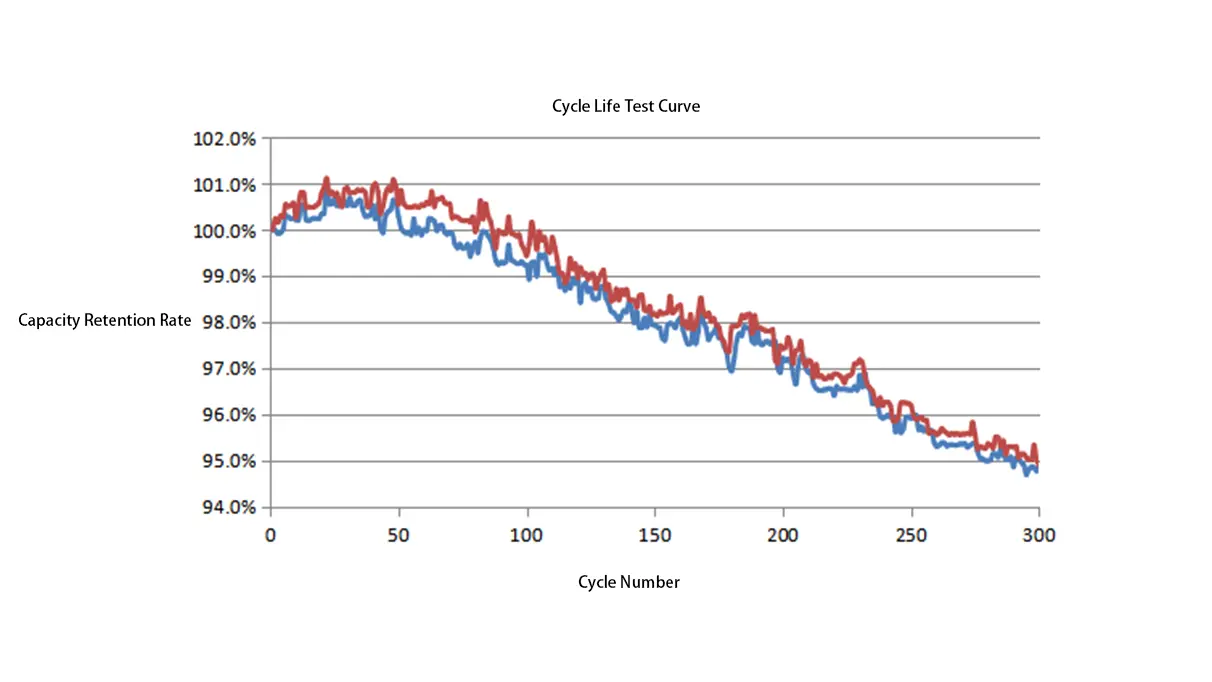

The above figure shows the cycle life test curves of the Symbo high-rate lithium battery at 1C charging and 30C and 40C discharging, respectively. It can be seen that after 300 cycles, the capacity retention rate at 30C discharge remains above 93%, and at 40C discharge, it remains above 85%, both maintaining high levels. The higher the discharge current, the more heat is generated inside the battery, and the greater the battery degradation. Therefore, the capacity retention rate at 40C discharge is lower than that at 30C discharge.
Why Choose Symbo High-Rate LiPo Batteries
Symbo's High Rate LiPo Battery uses electrode materials conducive to high-rate discharge. Its electrode internal resistance design is lower than that of ordinary batteries. Therefore, the high-rate lithium battery has a high discharge platform, high discharge efficiency, and higher output power and energy. As a High Discharge LiPo Battery manufacturer, Symbo also provides integrated battery system customization services. These include High Discharge LiPo Battery cell customization, battery management system (BMS), and structural design. We can also customize High Rate Discharge LiPo Batteries for different industries to meet users' specific needs, making your products more competitive.
- Source manufacturer, physical factory, strong R&D and production capabilities, short delivery time, and ample stock.
- Self-developed high-rate lithium battery cells, sufficient capacity, no false labeling, and guaranteed capacity.
- Strict quality control: Building a comprehensive quality system from components to finished products to ensure product quality.
- Safe and reliable, meeting multiple domestic and international battery certifications.
- Comprehensive service system: Quickly responding to customer inquiries and providing solutions.
We Provide the Following Services:
- Flexible support for customized high-rate LiPo battery solutions
- Reliable and stable performance
- Can provide samples and mass production
- Provide OEM and ODM services
Our High-Rate lithium polymer batteries developed and produced by Symbo are widely used in model aircraft, RC racing cars, power tools, electric racing cars, electric paragliders, Formula One racing cars, electric skateboards, electric pacemakers, jump starters, portable power supplies, starting batteries, and special equipment. Our R&D team works closely with our clients to provide suitable power solutions for their battery applications and other fields.
| Cell Model | Discharge Rate (C) |
Nominal Voltage (V) |
Capacity (mAh) |
Max continuous current(A) |
Thickness(mm) | Width (mm) |
Length (mm) |
Weight (g) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SYB5464074 | 25C | 3.2V | 1700mAh | 42.5A | 5.2±0.2 | 63.5±1.0 | 73.5±1.0 | 46.5±2.0 | |||||||
| SYB6445090 | 25C | 3.2V | 1900mAh | 47.5A | 6.2±0.2 | 44.5±1.0 | 90.5±1.0 | 49.5±2.0 | |||||||
| SYB8734096 | 25C | 3.2V | 2100mAh | 52.5A | 8.4±0.3 | 33.5±1.0 | 96.5±1.0 | 52.5±2.0 | |||||||
| SYB5954090 | 25C | 3.2V | 2100mAh | 52.5A | 5.7±0.2 | 53.5±1.0 | 91.0±1.0 | 55.0±2.0 | |||||||
| SYB7146094 | 25C | 3.2V | 2300mAh | 57.5A | 6.8±0.3 | 45±1.0 | 94.5±1.0 | 58.0±2.0 | |||||||
| SYB8348085 | 25C | 3.2V | 2500mAh | 62.5A | 8.0±0.3 | 47.5±1.0 | 85.5±1.0 | 63.0±2.0 | |||||||
| SYB7360078 | 25C | 3.2V | 2500mAh | 62.5A | 7.1±0.3 | 59.5±1.0 | 79.0±1.0 | 63.0±2.5 | |||||||
| SYB5961095 | 25C | 3.2V | 2550mAh | 63.75A | 5.7±0.2 | 60.5±1.0 | 96.0±1.0 | 66.5±2.5 | |||||||
| SYB5970096 | 25C | 3.2V | 2800mAh | 70A | 5.6±0.2 | 69.5±1.0 | 96.5±1.0 | 73.0±2.0 | |||||||
| SYB8442126 | 25C | 3.2V | 3500mAh | 87.5A | 8.1±0.3 | 41.5±1.0 | 127.0±1.0 | 89±3.0 | |||||||
| SYB6460119 | 25C | 3.2V | 3500mAh | 87.5A | 6.3±0.2 | 59.5±1.0 | 119.0±1.0 | 90.0±3.0 | |||||||
| SYB8061115 | 25C | 3.2V | 4350mAh | 108.75A | 7.7±0.3 | 60.5±1.0 | 115±1.0 | 109.0±3.0 | |||||||
| SYB8561115 | 25C | 3.2V | 4600mAh | 115A | 8.2±0.3 | 60.5±1.0 | 115.5±1.0 | 118.0±3.0 | |||||||
| SYB9161115 | 25C | 3.2V | 5000mAh | 125A | 8.8±0.3 | 60.5±1.0 | 115±1.0 | 128.0±3.0 | |||||||
| SYB8798112 | 25C | 3.2V | 7200mAh | 180A | 8.4±0.3 | 98.0±1.0 | 113.0±1.0 | 185.0±5.0 | |||||||
| SYB8678156 | 25C | 3.2V | 8000mAh | 80A | 8.2±0.3 | 77.5±1.0 | 153.5±1.0 | 199.0±3.0 | |||||||
| SYB8578185 | 25C | 3.2V | 9600mAh | 160A | 8.2±0.3 | 77.5±1.0 | 184.5±1.0 | 243.0±5.0 | |||||||
