Specifications

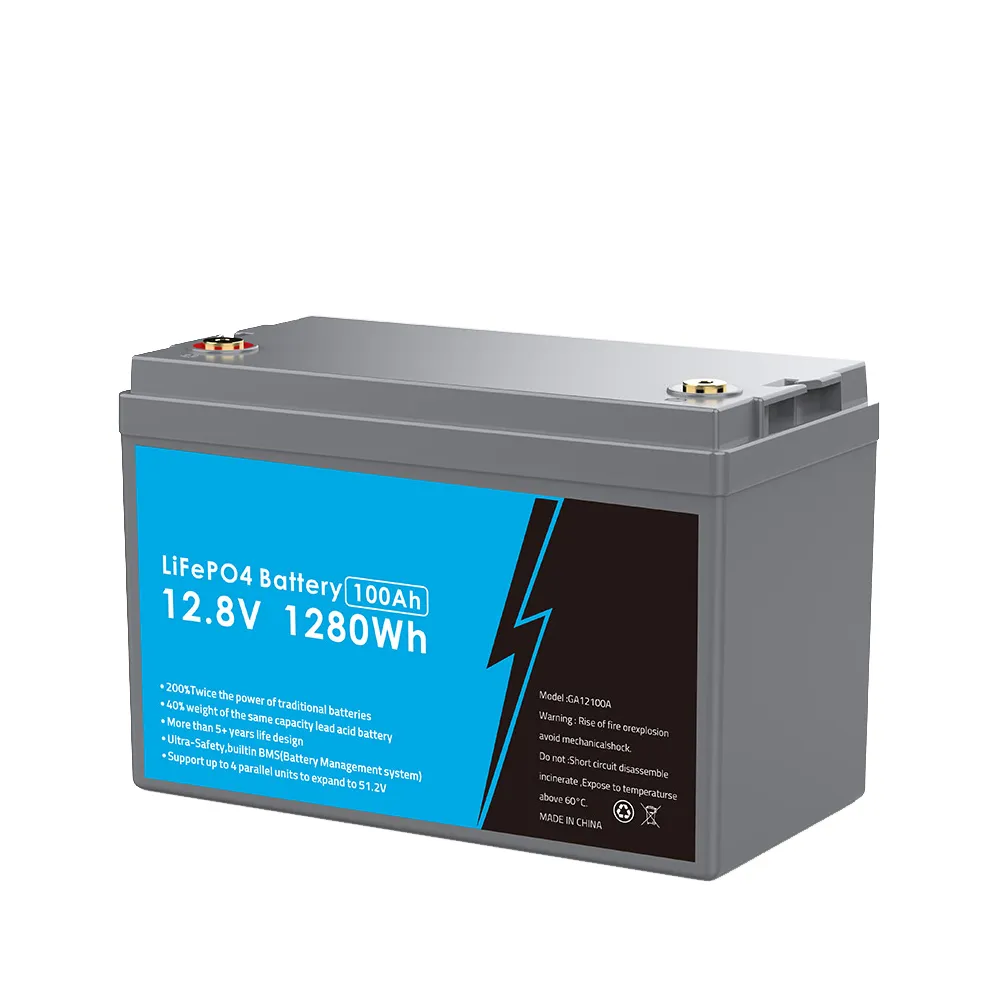

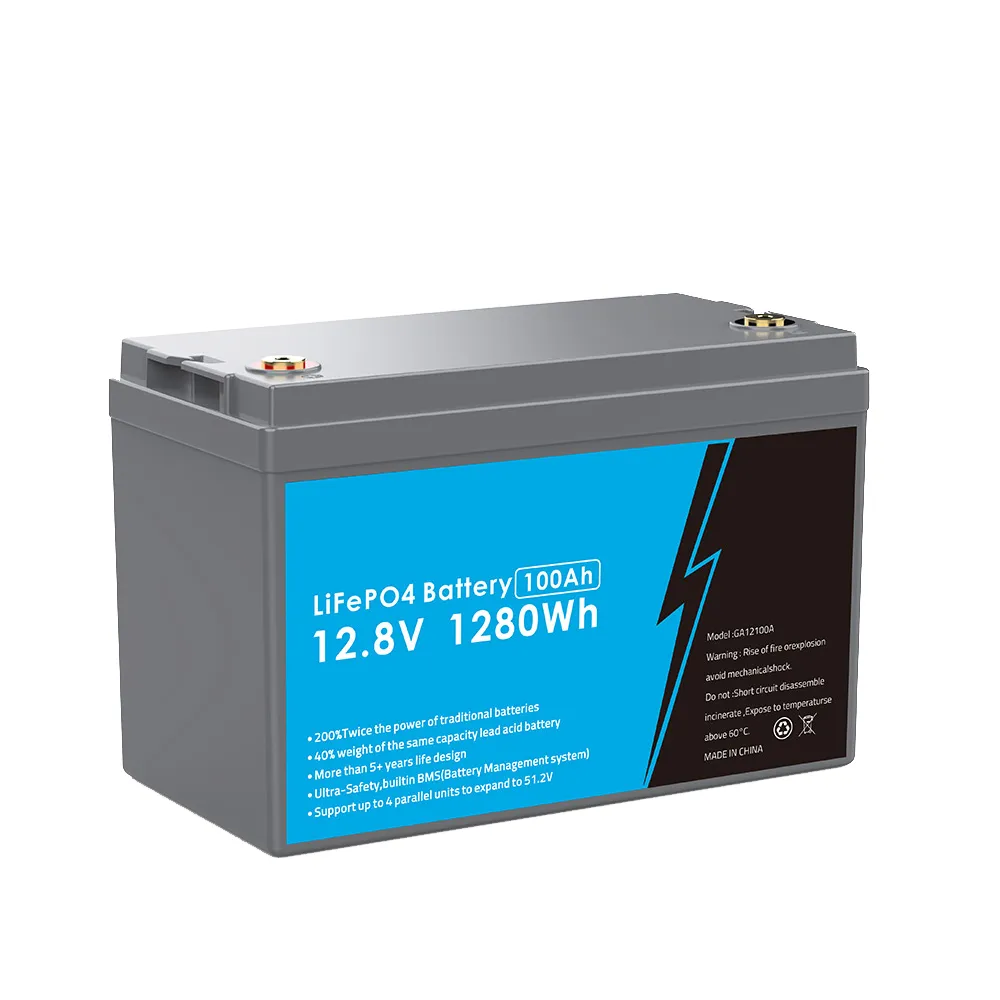

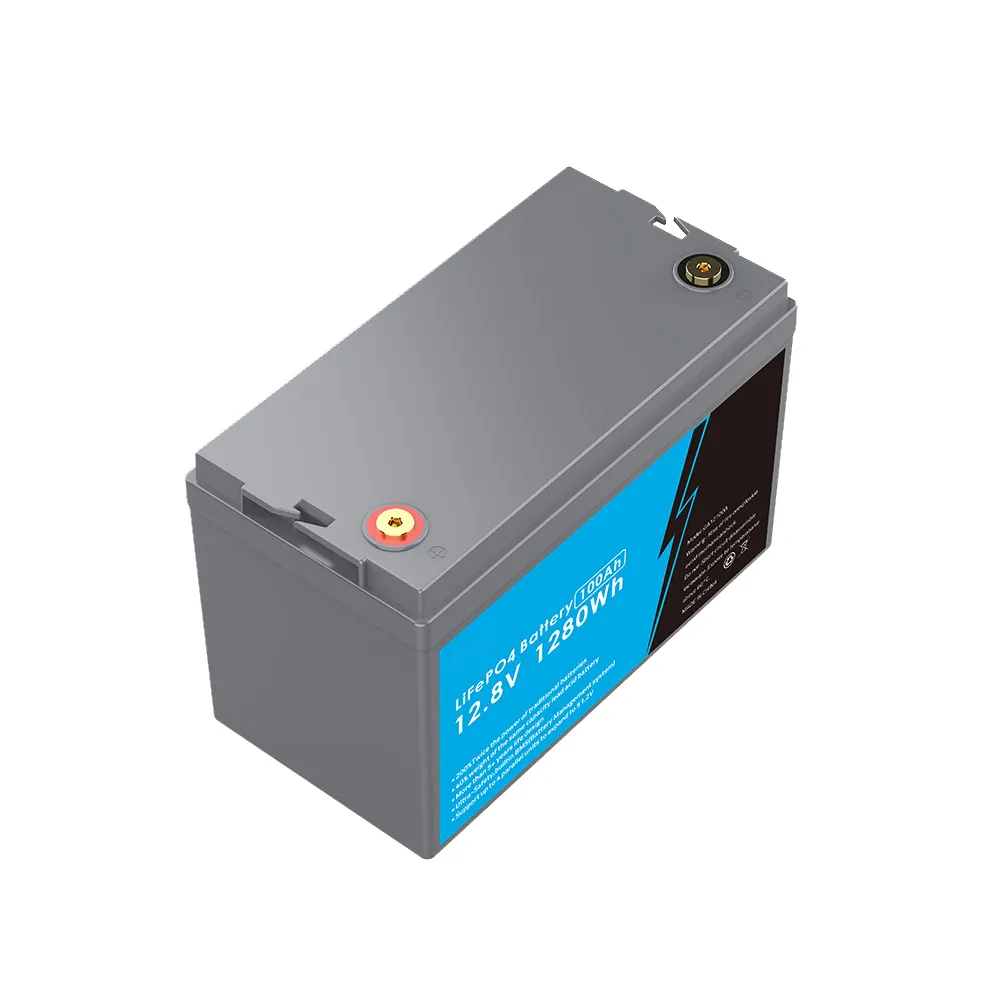

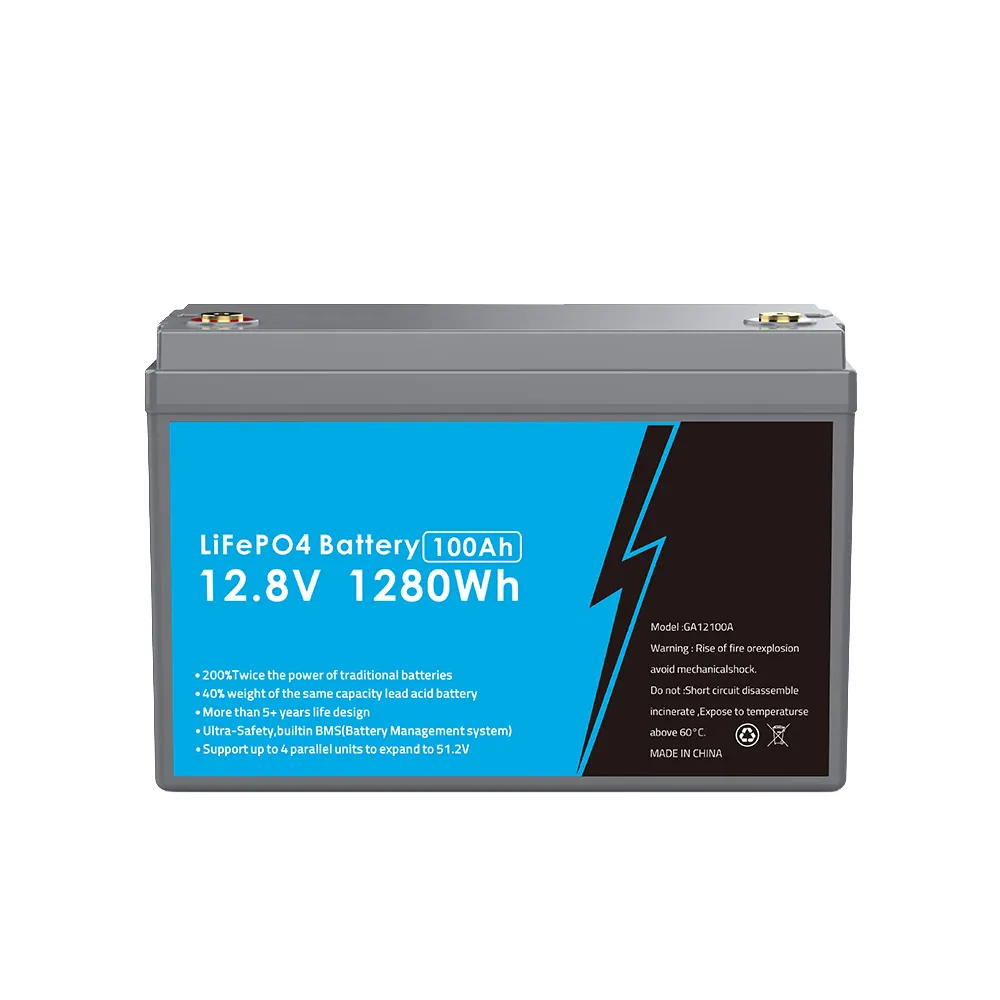

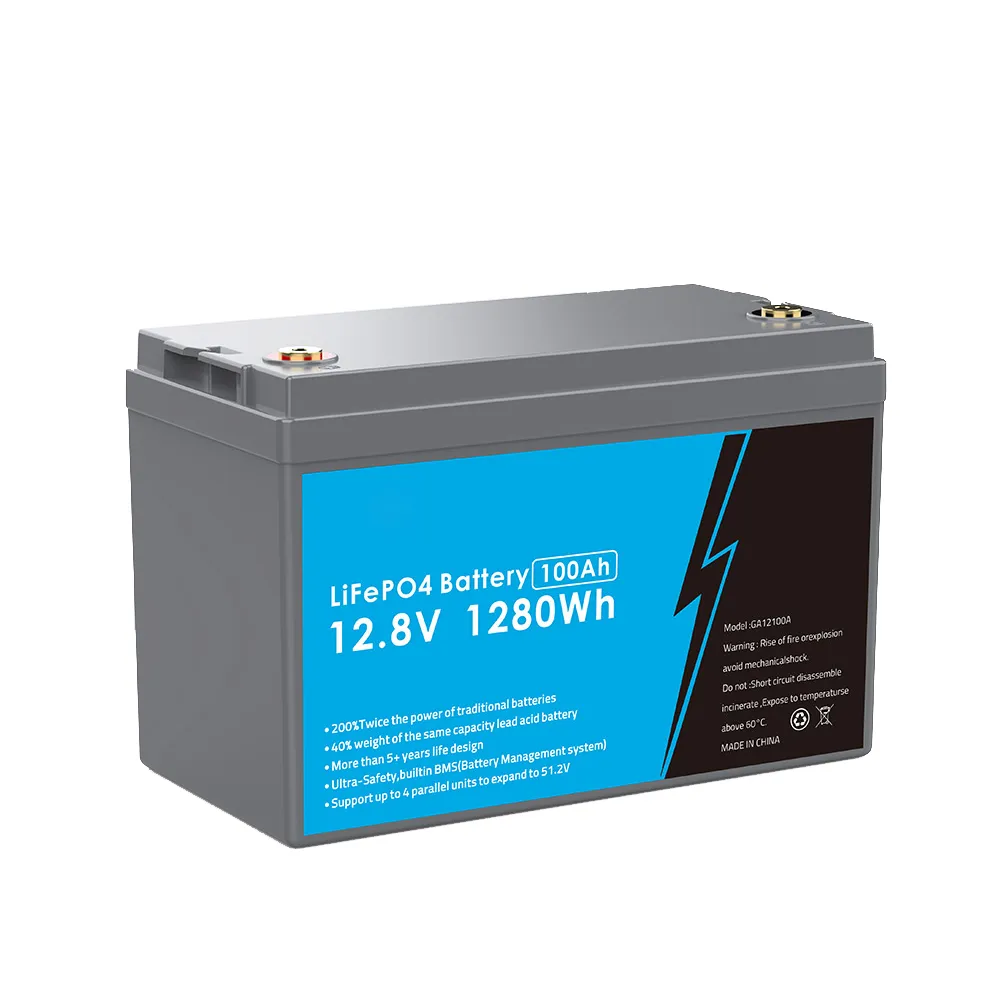

Model : SYB-12100A
| Parameter | Details | Parameter | Details |
|---|---|---|---|
| Chemistry | LiFePO4 | Voltage Range | 10.8-14.4V |
| Nominal Voltage | 12.8V | Recommended Charge Voltage | 14V |
| Nominal Capacity | 100Ah | Maximum Charge Voltage | 14.6V |
| Energy Density | 1280Wh | Recommended Charge Current | 50A |
| Dimensions (L×W×H) | 260×168×212 mm | Max Continuous Charge Current | 100A |
| Weight | 10.3 kg | Recommended Discharge Voltage | 12.8V |
| Port Type | M8 | Max Discharge Voltage | 10.8V |
| Port Torque | 12.4 mm | Recommended Discharge Current | 50A |
| Case Material | ABS | Max Continuous Discharge Current | 100A |
| Built-in BMS | Yes | Cycle Life (0.2C/0.5C, 25°C, 80) |
4000 cycles |
| AH Energy Efficiency | 98% | Discharge Temperature | -20°C to 60°C |
| Monthly Self-Discharge | 3.5% | Charge Temperature | 0°C to 55°C |
| Max Parallel Connection | 4 units | Storage Temperature | -20°C to 60°C |
| Max Series Connection | 4 units | Heating Function | NO |
| LCD Display | NO | Bluetooth | NO |
| Charge Current Protection | Current: 100A, Delay: 1s |
Primary Discharge Protection | Current: 200A Delay: 1s |
| Secondary Discharge Protection | Current: 300A, Delay: 0.1s |
Overcharge Voltage Protection | Voltage: 14.6V Delay: 1s |
| Over-discharge Voltage Protection | Voltage: 9.2V Delay: 1s |
Temperature Protection | Reset: ≤55°C Trigger: ≥65°C |
| Communication Port | NO |
Certification standards and testing
UL 1973, UN38.3, CE, RoHS
EMC electromagnetic compatibility testing
Cycle life testing to 3000+ cycles @80% DOD
Plus thermal cutoff and overvoltage tests
Applications
RVs and caravans
Marine trolling motors
Backup power for telecom
